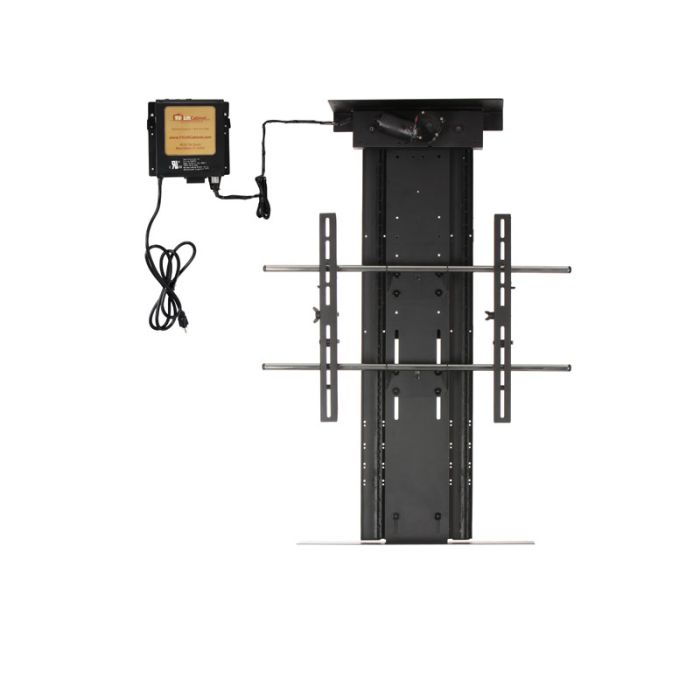

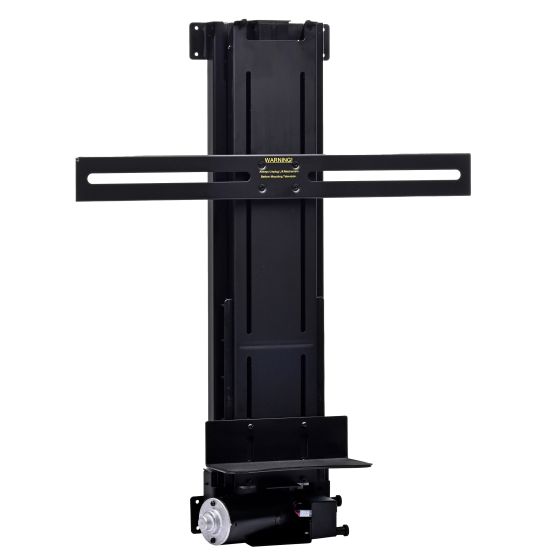

Our heavy duty ceiling lift adopts the same rack and pinion drive system and motor with low noise level as our other lift systems. This unit comes equipped with a wireless RF remote control.This unit is very rugged yet quiet and smooth in its operation.
- Maximum TV height = 38.5"
- Retracted height = 43.82”
- Offers approximately 39” of travel
- Built in tilt feature allows for up to 15 degrees of tilt for optimal viewing
- VESA compliant universal TV mount with lock included
- Mounting pattern compatibility = 200 x 200mm and 400 x 400mm
- Drive System provides fast, smooth, and quiet travel at over 1"per second
- Unique design eliminates flat panel TV width constraints
- Compatible with 110/120VAC 60 Hz (standard US power outlet)
- Multiple control options, including: current sensing, contact control and RF remote (included)
- Onboard surge protected 110 outlet
- Adjustable drywall bracket included
- Maximum TV weight of 80 pounds
- AMX/Crestron control compatible
- Requires 10 minutes of simple assembly
- Our TV lift accommodates all CURVED TV’s that fall within the maximum TV size listed above
Overall Dimensions Closed
30-9/16" W x 5-7/8 D x 43-3/4"H
Maximum TV Size
Unlimited Width x 5” x 38-1/2”
* Do not include TV's stand in your measurement.
* Do not include TV's stand in your weight calculation.
Ease of Installation
Simple 10-15 Min
All Lift & TV Mounting Hardware Included
